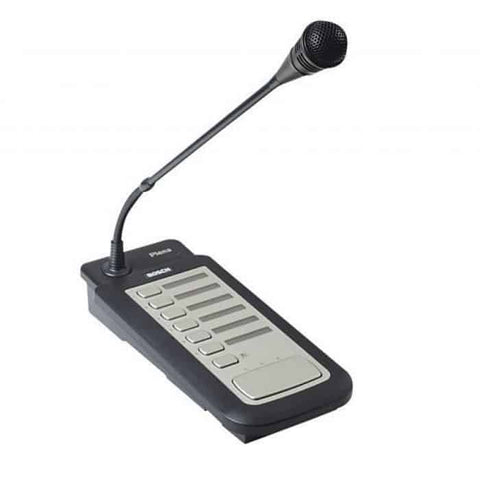

Bosch LBB 1946/00 Plena Six-zone Call Station

Bosch LBB 1946/00 Plena Six-zone Call Station

Rs. 41,670.00

Key Features

  • 6-zone paging with All-Call function
  • Flexible gooseneck condenser microphone
  • Unidirectional microphone for clear speech
  • Dedicated Push-to-Talk (PTT) button
  • LED indicators for zone and system status
  • Selectable microphone gain and speech filter
  • Built-in limiter for distortion-free announcements
  • 18 selectable pre/post-call chime combinations
  • Two selectable priority levels
  • Sturdy metal base with desktop or flush-mount installation
Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 41,670.00
Bosch LBB 1946/00 Plena Six-zone Call Station
Rs. 41,670.00

Product Description

The Bosch LBB1946/00 Plena Six-Zone Call Station is a professional desktop paging microphone designed for the Bosch Plena Public Address system. It enables users to make clear and reliable announcements to any of six individual zones or to all zones simultaneously. Featuring a flexible gooseneck condenser microphone, selectable call chimes, priority settings, and a robust metal-base design, it is ideal for schools, offices, factories, retail stores, hotels, and other commercial PA installations.

Specification

Specification Details
Product Type Six-Zone Call Station
Compatible System Bosch Plena LBB1925/10 System Pre-Amplifier
Microphone Unidirectional Condenser, Flexible Gooseneck
Zone Selection 6 Zones + All-Call
Frequency Response 100 Hz – 16 kHz
Output Level 700 mV
Output Impedance 200 Ω
Power Supply 18–24 V DC
Current Consumption <30 mA
Chime Options 18 Selectable Combinations
Priority Levels 2 Selectable Levels
Cable Length 5 m
Dimensions (H × W × D) 40 × 100 × 235 mm
Stem Length 390 mm
Weight Approx. 1 kg
Operating Temperature -10°C to +55°C
