Rs. 19,300.00

Key Features

High-performance Texas Instruments TPA3255 Class-D amplifier.

Delivers up to 240W output at 4Ω with the included 48V/5A power supply.

PFFB technology for improved linearity and reduced distortion.

Balanced XLR/TRS and unbalanced RCA input options.

Selectable RCA input gain for flexible system integration.

Automatic signal detection and standby functionality.

Compact aluminium housing with efficient heat dissipation.

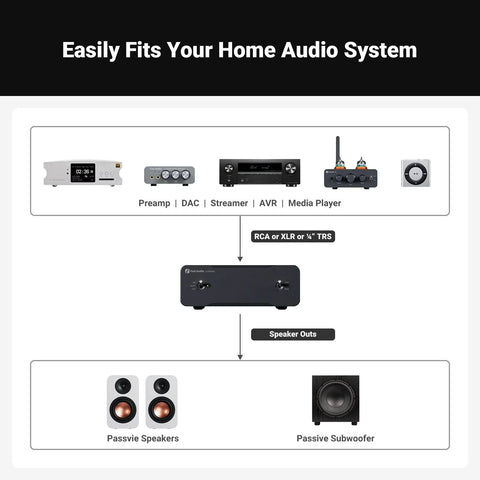

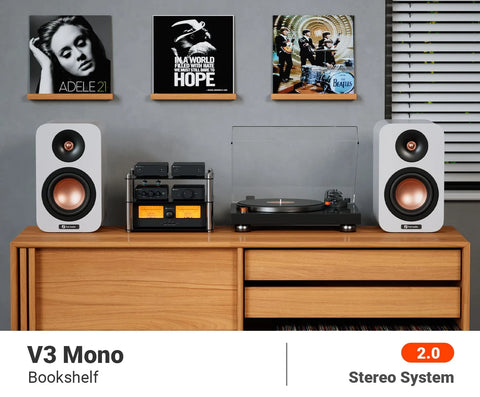

Suitable for high-fidelity stereo systems, bookshelf speakers and home audio setups.

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 19,300.00
Fosi Audio V3 MONO-48V5A Mono Monoblock Power Amplifier
Rs. 19,300.00

Product Description

A debut Class D audio amplifier with PFFB technology to significantly improve sound purity and system efficiency, offering a flexible solution to your home audio system.

Engineered for Audiophiles - Optimal Choice for Home Audio Systems

In 2023, following the launch of the V3 stereo amplifier, we received numerous valuable suggestions and feedback from our global audio lovers. We listen intently, record diligently, and develop with dedication, ultimately striving to transform your suggestions and ideas into reality—the V3 mono.

  • Input: RCA, XLR, ¼" TRS; Output: Passive Speaker (supports banana plug or bare wire connection)
  • SINAD: XLR--101dB; RCA--93dB; SNR: ≥123dB
  • Rated Power Output: 48V/5A 240W@4Ω; 32V/5A 100W@4Ω

Post-Filter Feedback Technology Integrated

Significantly reduces distortion, enhances linearity and frequency response to get superior sound.

NICHICON Caps, Japanese

Ensure superior sound clarity, longevity, and stable electrical performance, enhancing the fidelity of audio reproduction.

WIMA Caps, German

Provide exceptional sound quality and signal stability, greatly enhancing the audio experience.

Sumida Inductor, Japanese

Offers superior signal purity and noise reduction, elevating the amplifier's sound performance.

ELNA Caps, Japan

Ensure enhanced audio clarity and stability, contributing to a richer sound experience.

Specifications

Brand

Fosi Audio

Model

V3 MONO-48V5A

Product Type

Monoblock Power Amplifier

Amplifier Class

Class D

Number of Channels

1 Channel (Mono)

Amplifier Chip

Texas Instruments TPA3255

Amplifier Technology

Post-Filter Feedback (PFFB)

Rated Output Power

240W @ 4Ω (48V/5A power supply)

Output Power

160W @ 6Ω, 120W @ 8Ω (48V supply)

Output Power with 32V/5A Supply

100W @ 4Ω

Supported Speaker Impedance

2Ω – 8Ω

Frequency Response

10Hz – 30kHz (±0.06dB)

Total Harmonic Distortion (THD)

Less than 0.006%

SINAD

101dB (XLR), 93dB (RCA)

Signal-to-Noise Ratio (SNR)

≥123dB

Dynamic Range

≥123dB

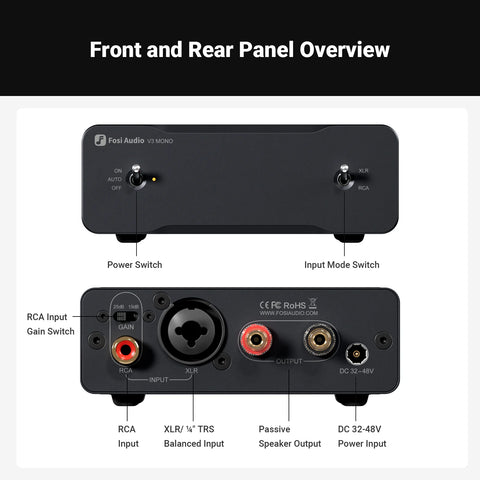

Balanced Inputs

XLR / 6.35mm (¼-inch) TRS

Unbalanced Input

RCA

Speaker Output

Speaker Terminals

Speaker Connection

Banana Plugs or Bare Wire

Balanced Input Gain

20dB

RCA Input Gain

Selectable 25dB / 31dB

Power Supply

48V DC, 5A

Input Voltage Range

32–48V DC

Automatic Standby

Yes

Colour

Black

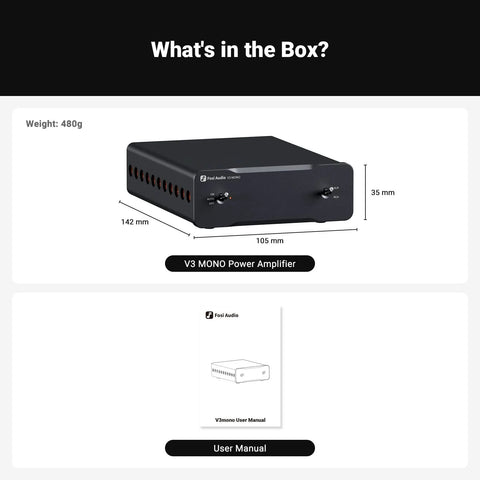

Dimensions (W × D × H)

Approx. 142 × 107 × 41mm
