Product Description
If you want to play your favorite songs entertainingly, a mini stereo amplifier is the best way to go. Fosi Audio TB10D is an analog input(RCA) Class-D audio amplifier that easy to install to build your home audio sound system.

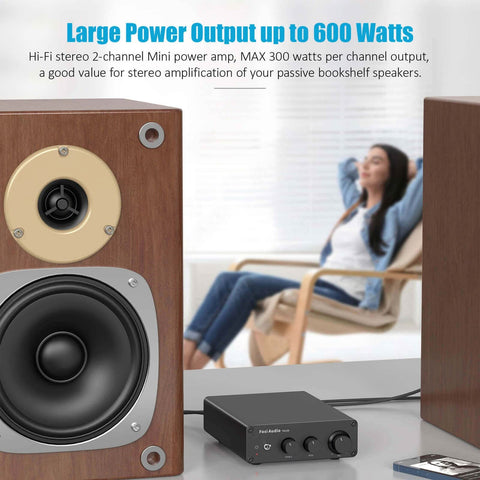

MAX Power Output up to 600Watts. TB10D adopts TI TPA3255 high-performance Class-D power amplifier chip enabling true premium sound quality. TPA3255 features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath Ultra-HD). This technology allows ultra low distortion across the audio band and superior audio quality. The device is operated in AD-mode, and can drive up to 2 x 300 W into 4-Ω load at 10% THD and 2 x 150 W unclipped into 8-Ω load.
The high-efficient 2.0CH 300Wx2 desktop power amplifier can drive almost home large passive bookshelf speakers ensuring top-notch sound quality and is compatible with most sound equipment such as computers, DVDs, CD players, PC, laptops, TV, etc.

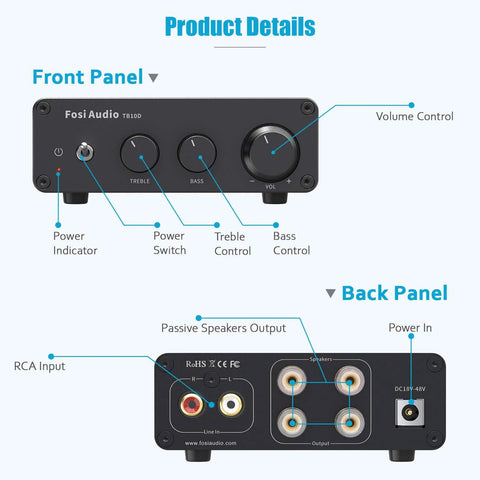

Mini classic simple design with bass, treble, and volume control. Replaceable Knobs: ORANGE KNOB, GREY KNOB. On the rear are banana plug connectors that can also accept a raw wire.
What you Get: TB10D amplifier x1, User Manual x1, 32V/5A Power Adapter x1(Note: You need a more powerful power supply to get the MAX 300W x2 power output, such as 48V/10A. The plug of the power adapter will match the country of your delivery address), AC Cord x1, 24-month worry-free warranty, and friendly customer service.
Tips: If you're in need of a Bluetooth amplifier, you can check out the BT20A PRO. It also has the same chip and power output, with the added feature of a PRE-OUT.
The Fosi Audio TB10D is a class D amplifier designed to give you the most bang for buck. This amplifier features an ultra-compact design with a maximum power output of 600W, making it perfect for small sound systems or 2 channel stereo systems.
Mini amp - As big as you want it.
You will enjoy the remarkable improvement an amplifier can bring to your sound. Music is now big, bold and live
The Best Sounding Class D Amplifier
Easy to install Class-D audio amplifier. Ideal for building home audio sound system. Designed for high quality audio output with RCA input connection.
The High-Performance Audio Amplifier

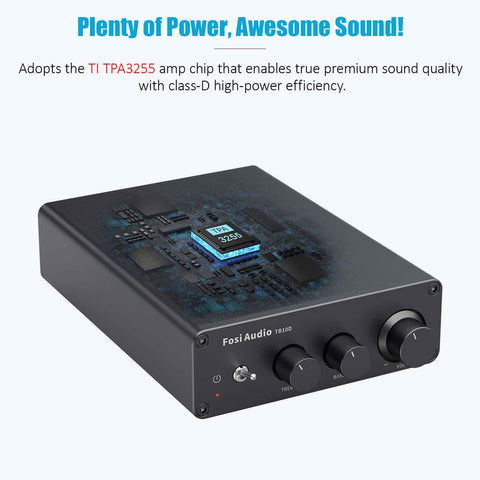

True to its word, the TB10D delivers masterful performance with excellent power efficiency. Packing a powerful TPA3255 chip, this amplifier can drive your speakers with ease.
Specifications
|
Brand |
Fosi Audio |
|
Model |
TB10D |
|
Amplifier Type |
Class-D Stereo Power Amplifier |
|
Number of Channels |
2.0 Channel |
|
Amplifier Chipset |
Texas Instruments TPA3255 |
|
Maximum Output Power |
300W × 2 @ 4Ω* |
|
Speaker Impedance |
2Ω–8Ω |
|
Input Mode |
RCA Stereo |
|
Output Mode |
Passive Speakers |
|
Frequency Response |
20Hz–40kHz (±2dB) |
|
Total Harmonic Distortion (THD) |
≤ 0.3% |
|
Signal-to-Noise Ratio (SNR) |
≥ 90dB |
|
Input Sensitivity |
≤ 600mV |
|
DC Input Voltage Range |
18V–48V |
|
Included Power Supply |
32V DC, 5A |
|
Tone Controls |
Bass and Treble |
|
Volume Control |
Front Panel |
|
Product Dimensions |
Approx. 166 × 105 × 40mm |
|
Product Weight |
Approx. 1.05kg (manufacturer product page) |
